Non Flammable Ladder Style Cable Ties Crimping Tools Unnessaried Single Lock

Product Categories
YUEQING XUANCHANG ELECTRIC CO.,LTD
Contact Now

Non Flammable Ladder Style Cable Ties Crimping Tools Unnessaried Single Lock

Brand Name : XCCH

Model Number : 12X450mm ladder type stainless steel cable tie

Certification : RoHs,SGS,

Place of Origin : China

MOQ : 10000pcs

Price : Negotiation

Payment Terms : T/T,Western Union

Supply Ability : 100000pcs

Delivery Time : Within 7 days

Packaging Details : 100PCS/bag

Product name : epoxy coated ladder type stainless steel cable tie

Material : stainless steel 316#/304#

Color of cable tie : Black color

Coating material : Polyester/epoxy,Nylon 11

Flammability class : fireproof

Certificate : Material test certificate,ISO9001

Length : 450mm

Contact Now

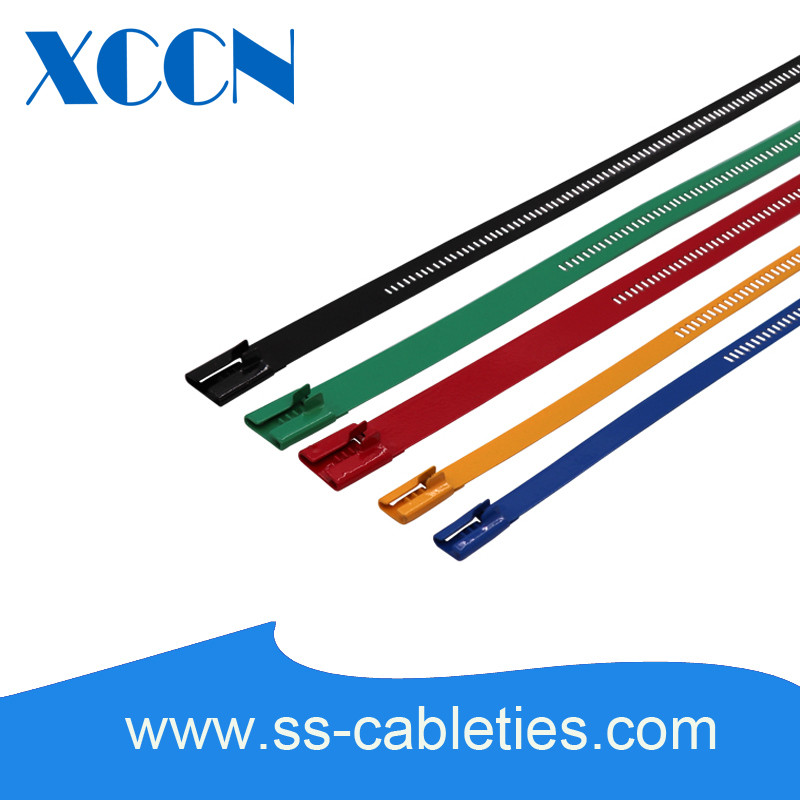

12x0.35x450mm self-locking fully epoxy coated ladder type stainless steel cable ties with fireproof coating

Description:

  • ．Unique multi-locking mechanism design on the ladder strip can be applied without crimping tools.
  • Self-locking for fast, easy installation.
  • ．Extended ladder slot provides the same length of tie with larger bundle diameter.
  • ．Large round slot at the end of tail allows hook-type tools to use easily.
  • ．Stronger tensile strength than single-lock design ladder type stainless steel cable tie.

Technical information:

  • Material: Stainless steel class 304# /316#
  • Coating material: Polyster/epoxy,Nylon 11
  • Operation temperature:-80℃~150℃
  • Color Choice: Black/Yellow/Red/Blue/Green
  • Flammability class: fireproof
  • Material properties: UV-resistant, halogen free, non-toxic
  • Certificate:Neutral Salt Spray Test(ASTM B117-11)

  • Customized printing Logo services

Advantage of coating:

The coating with fully polyester powder coating will provide edge of cable ties with more additional protection.

Specification:

Item No. thickness Length Max. Bundle Dia. Tensile Strength Package
mm/inch mm/inch mm inch lbs kg pcs/bag
7×150 0.35/0.014 150/5.91 40 1.57 250 112 100
7×225 225/8.86 62 2.44 100
7×300 300/11.81 81 3.19 100
7×400 400/15.75 113 4.45 100
7×450 450/17.72 127 5.0 100
7×550 550/21.65 159 6.26 100
7×600 600/23.62 176 6.93 100
7×700 700/27.56 207 8.15 100
7×800 800/31.50 238 9.37 100
12×150 0.35/0.014 150/5.91 40 1.57 450 200 100
12×225 225/8.86 62 2.44 100
12×300 300/11.81 81 3.19 100
12×400 400/15.75 113 4.45 100
12×450 450/17.72 127 5.0 100
12×550 550/21.65 159 6.26 100
12×600 600/23.62 176 6.93 100
12×700 700/27.56 207 8.15 100
12×800 800/31.50 238 9.37 100

Dimension:

Non Flammable Ladder Style Cable Ties Crimping Tools Unnessaried Single Lock

Non Flammable Ladder Style Cable Ties Crimping Tools Unnessaried Single Lock
