Coated Metal Reinforced Industrial Cable Ties Nylon Coated 150mm Length

Brand Name : XCCH

Model Number : 7X700mm ladder type stainless steel cable tie

Certification : RoHs,SGS, tensile strength test

Place of Origin : China

MOQ : 10000pcs

Price : Negotiation

Payment Terms : T/T,Western Union

Supply Ability : 100000pcs

Delivery Time : Within 7 days

Packaging Details : 100PCS/bag

Product name : ladder type stainless steel cable tie

Material of cable ties : stainless steel 316#/304#

Color : Red color

Coating material : Polyester/epoxy,Nylon 11

Flammability class : Firproof

Thickness : 0.35mm

Length : 700mm

Contact Now

7x0.35x700mm color customized self-locking fireproof ladder type stainless steel cable ties with fully epoxy coated

Description:

  • ．Unique multi-locking mechanism design on the ladder strip can be applied without crimping tools.
  • Self-locking for fast, easy installation.
  • ．Extended ladder slot provides the same length of tie with larger bundle diameter.
  • ．Large round slot at the end of tail allows hook-type tools to use easily.
  • ．Stronger tensile strength than single-lock design ladder type stainless steel cable tie.

Technical information:

  • Material: Stainless steel class 304# /316#
  • Coating material: Polyster/epoxy,Nylon 11
  • Operation temperature:-80℃~150℃
  • Color Choice: Black/Yellow/Red/Blue/Green
  • Flammability class: fireproof
  • Material properties: UV-resistant, halogen free, non-toxic
  • Certificate:Neutral Salt Spray Test(ASTM B117-11)
  • Customized printing Logo services

Advantage of coating:

The coating with fully polyester powder coating will provide edge of cable ties with more additional protection.

Specification:

Item No. thickness Length Max. Bundle Dia. Tensile Strength Package
mm/inch mm/inch mm inch lbs kg pcs/bag
7×150 0.35/0.014 150/5.91 40 1.57 250 112 100
7×225 225/8.86 62 2.44 100
7×300 300/11.81 81 3.19 100
7×400 400/15.75 113 4.45 100
7×450 450/17.72 127 5.0 100
7×550 550/21.65 159 6.26 100
7×600 600/23.62 176 6.93 100
7×700 700/27.56 207 8.15 100
7×800 800/31.50 238 9.37 100
12×150 0.35/0.014 150/5.91 40 1.57 450 200 100
12×225 225/8.86 62 2.44 100
12×300 300/11.81 81 3.19 100
12×400 400/15.75 113 4.45 100
12×450 450/17.72 127 5.0 100
12×550 550/21.65 159 6.26 100
12×600 600/23.62 176 6.93 100
12×700 700/27.56 207 8.15 100
12×800 800/31.50 238 9.37 100

Dimension:

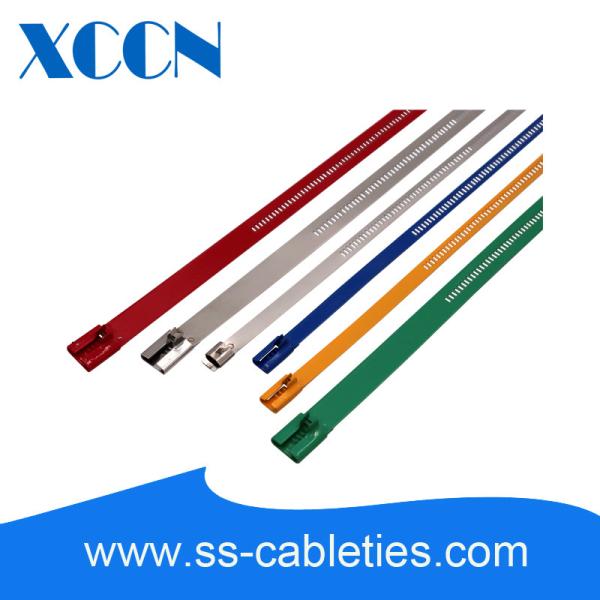

Coated Metal Reinforced Industrial Cable Ties Nylon Coated 150mm Length

Coated Metal Reinforced Industrial Cable Ties Nylon Coated 150mm Length
